Thumbnail Filmstrip of ADS200 & ST125 Soldering and Rework Bundle w/ 2 Handpieces; TD-200, SX-100 and Tips Images
The Low-Cost 2-System Bundle
The Solder-Rework Bundle gives you everything you need to power all PACE AccuDrive® and SensaTemp® handpieces!
Soldering-Rework with Expansion Capabilities

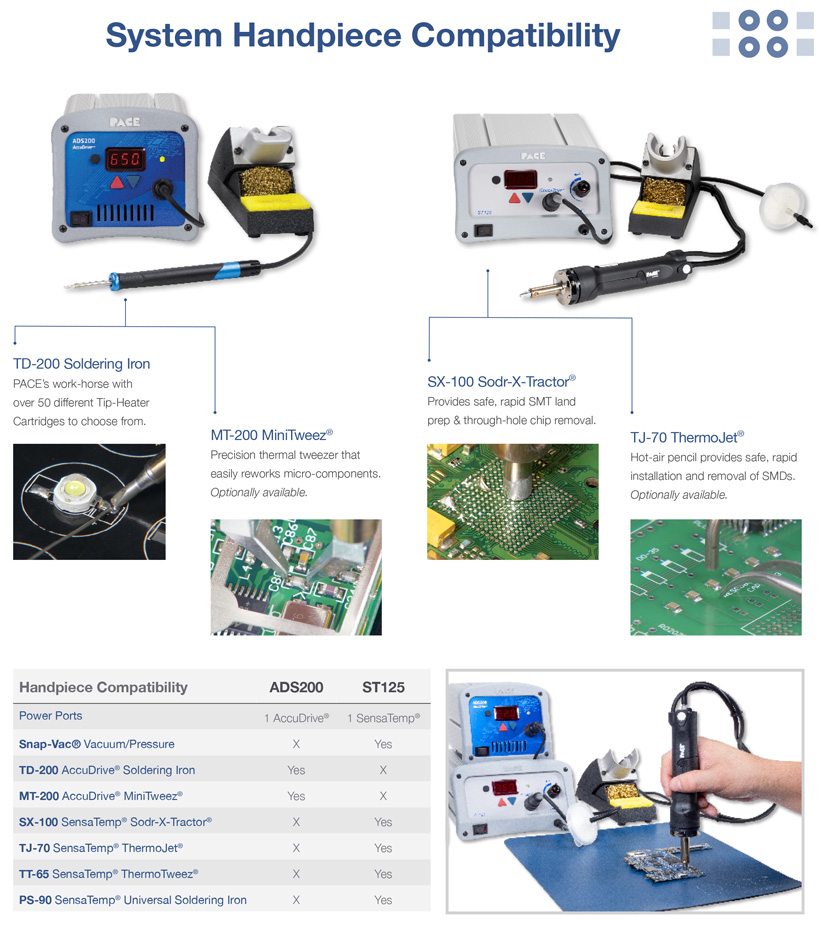

We bundled our two most popular single channel systems to bring you PACE’s full array and capability of soldering & rework tools at a lower initial cost. The Solder-Rework Bundle includes the ADS200 Production Soldering Station with TD-200 Iron and the ST125 Rework Station with the SX-100 Sodr-X-Tractor®. This Bundle is far more than a soldering and desoldering system. Its functionality greatly expands when adding optional AccuDrive® and SensaTemp® compatible handpieces, including: MT-200 MiniTweez®, PS-90 Soldering Iron, TJ-70 ThermoJet® and TT-65 ThermoTweez®. Enjoy complete interoperability and interchangeability.
Buy what you need now. Add capability later. With PACE’s new
system and handpiece line, you can mix and match handpieces and
systems, reduce inventory requirements and maximize cost savings!
Dual Technologies Integrated Into One Bundle
With nearly 80% greater maximum power than our previous design* the standard system includes the TD-200 AccuDrive Soldering Iron which provides unsurpassed thermal performance on the heaviest boards at the most accurate temperatures for ultimate process control and maximum throughput…even in demanding production environments!
Tips Included!
Also including a 1/16” (1.59mm) 30° Chisel Blue Series Tip-Heater Cartridge (1130-0019-P1) and the 1.02mm Thermodrive® Tip (1121-0931).
Features
- One AccuDrive port, one SensaTemp port and the self-contained auto Snap-Vac pump.
- ISB and Auto-Off capability increases tip-life up to 6 times and greatly reduces tip costs.
- AccuDrive Tip-Heater Cartridges meet and exceed ANSI/J-STD-001 Absolute Temperature Accuracy Requirement without the need for calibration.
- Tips Included 1/16” (1.59mm) 30° Chisel Tip-Cartridge (1130-0019-P1) and 1.02mm Thermodrive® Tip (1121-0931)
- Password protected settings allow the operator to work within an approved temperature range or at a single temperature.
Power Requirements | 115 VAC, 60 Hz (120 watts maximum) || 230 VAC, 50 Hz (120 watts maximum) |
Power Ports | 1 AccuDrive®, 1 SensaTemp® |
Self-Contained Internal Pump | Snap-Vac® Vacuum/Adjustable Pressure Capability |
Dimensions | 135mm (5.3”) H X 165mm (6.5”) W X 260mm (9.25”) D |
Weight | 11.3 Kgs (25 lbs.) |
Tip-to-Ground Resistance | < 2 Ohms |
Temperature Stabililty | 1.1°C (2°F) |
Temperature Accuracy | Meets or exceeds ANSI J Std 001 |
Set Temperature Range | AccuDrive® 177-454°C (350-850°F) || SensaTemp® 37-482°C (100-900°F) |
| Manufacturer (aka Brand): | Pace |
