15U ECONOMY WALL CABINET
15U ECONOMY WALL CABINET
Images are for reference only
See Product Specifications





Manufacturer: Hammond MFG
Our Price: $625.00
Mfg Part Number: RB-FW15


Availability: Usually Ships in 3 to 5 Days
Product Code: RB-FW15_H104
Qty :

Description Specifications

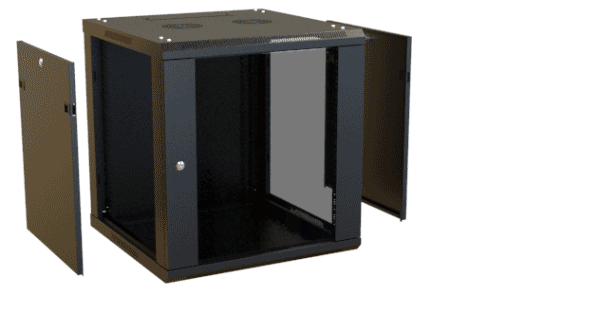

The RB-FW Series is a cost-effective enclosed wall mount cabinet. Constructed in light duty 16-gauge steel. Includes two (2) pairs of EIA-310-D compliant 19 inch square hole mounting rails. Starter pack of M5 screws and cage nuts included. For 10-32 hardware see the 1421CNABK Series. Rails are adjustable in depth in 25mm increments. Includes one (1) tempered glass front door. Includes one (1) pair of locking removable side panels. Front and side of frame includes venting for air flow. Rear cable access. Provision for optional fans on top panel. Ships un-assembled - some assembly required. Finished in smooth black powder paint. Tested to 130 lbs of equipment load capacity.
Features
  • Constructed in light-duty 16-gauge steel.
  • Includes two (2) pairs of EIA compliant 19-inch square hole mounting rails.
  • Starter pack of (25) M6 screws, cage nuts and washers included.
  • For 10-32 hardware, please see our CAGKIT Series.
  • Rails are adjustable.
  • Includes one (1) locking tempered glass lightly smoked reversible front door.
  • Includes one (1) pair of locking removable side panels.
  • The front and side of the frame include venting for airflow.
  • Rear cable access.
  • Provision for optional fans on the top panel.
  • Ships unassembled - some assembly is required.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
  • Finished in black powder paint.
  • Tested to 130 lbs (59 kg) of equipment load capacity.
  • RoHS Compliant.
